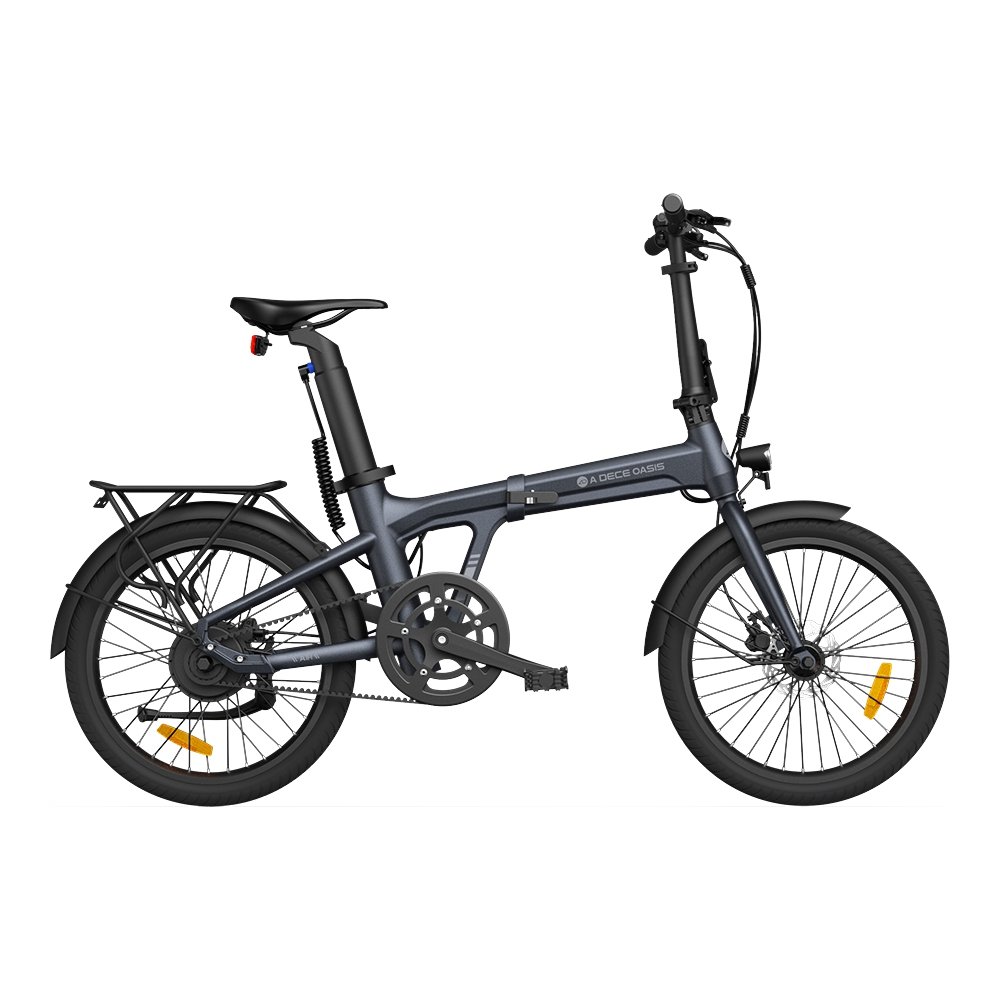

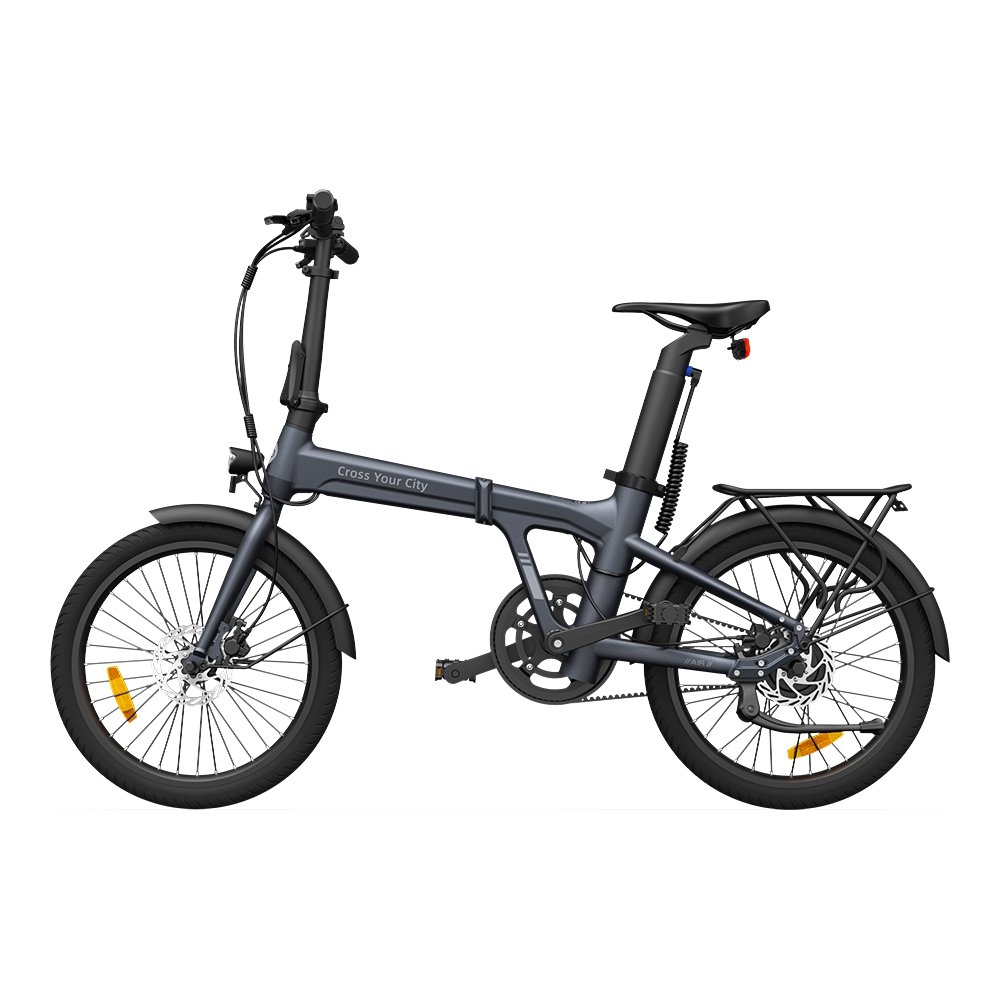

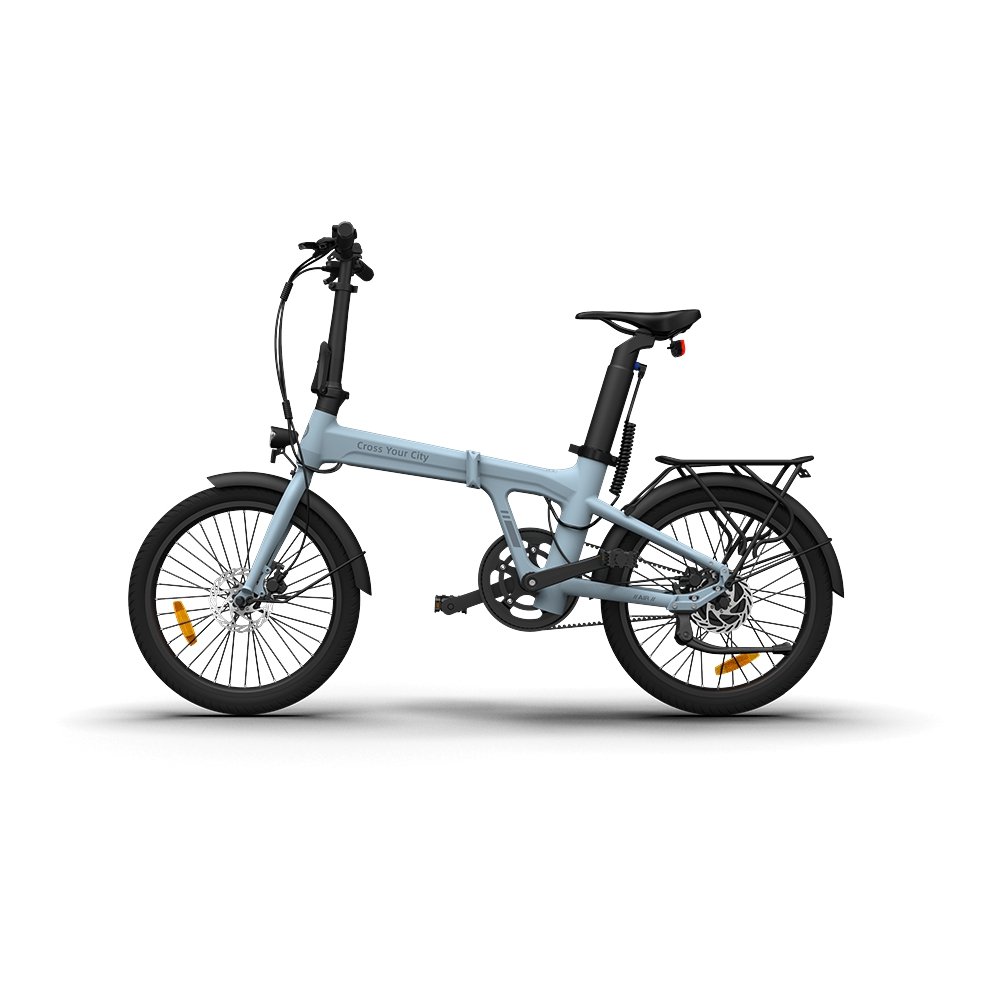

ADO Air 20 Folding Electric Bike

ADO Air 20 Folding Electric Bike

ADO Air 20 Folding Electric Bike

Color choices :

Β£1,297.00

β€’ Β£50.00 Discount

Images

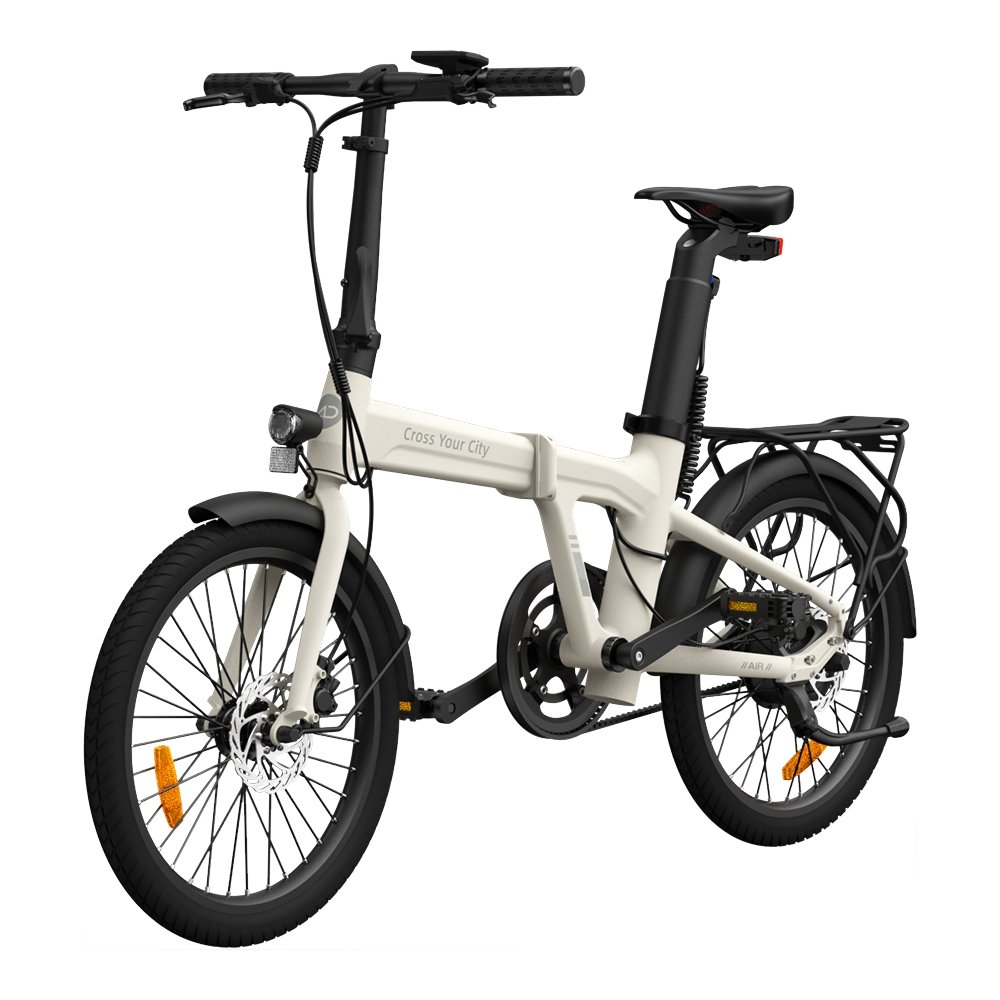

ADO Air 20 Folding Electric Bike - Ultra-light Folding e-Bike

The ADO Air 20 Folding Electric Bike is a revolutionary mode of transportation that combines convenience, efficiency, and sustainability. This compact and lightweight electric bike is perfect for urban dwellers, commuters, and adventure enthusiasts.

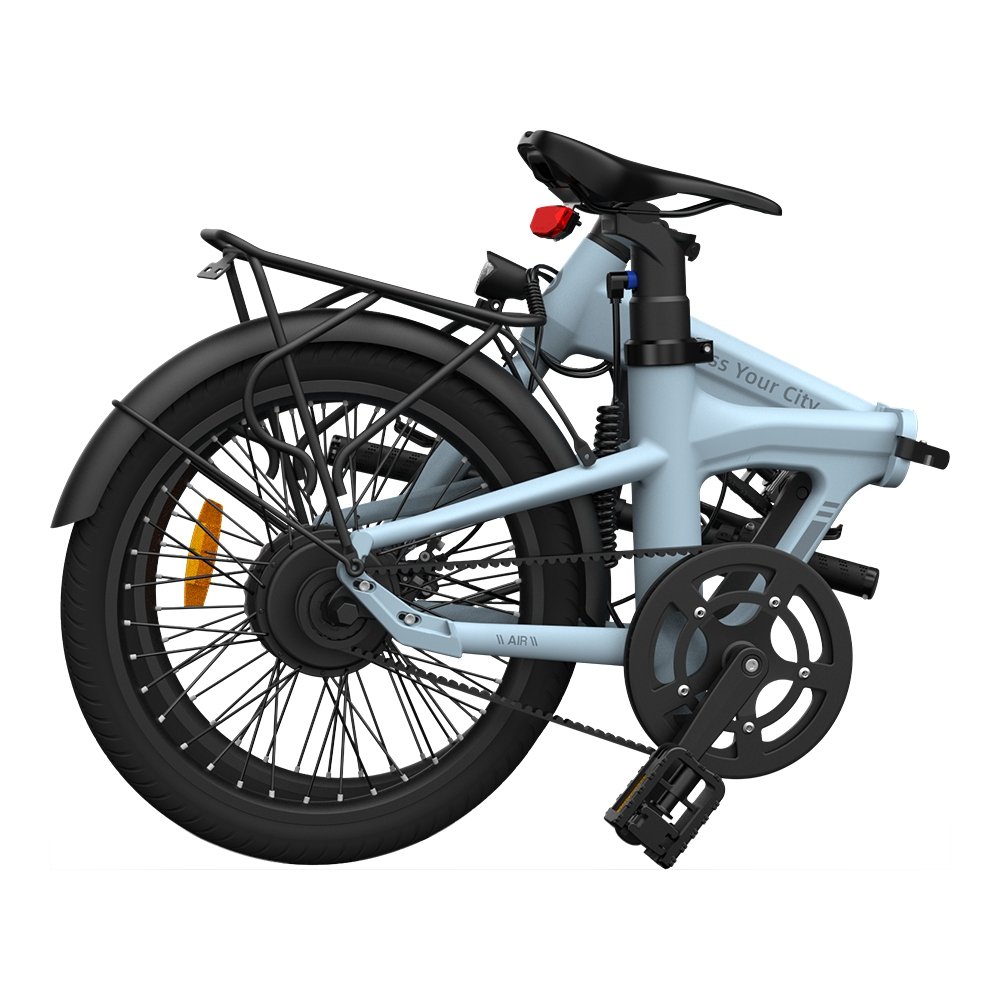

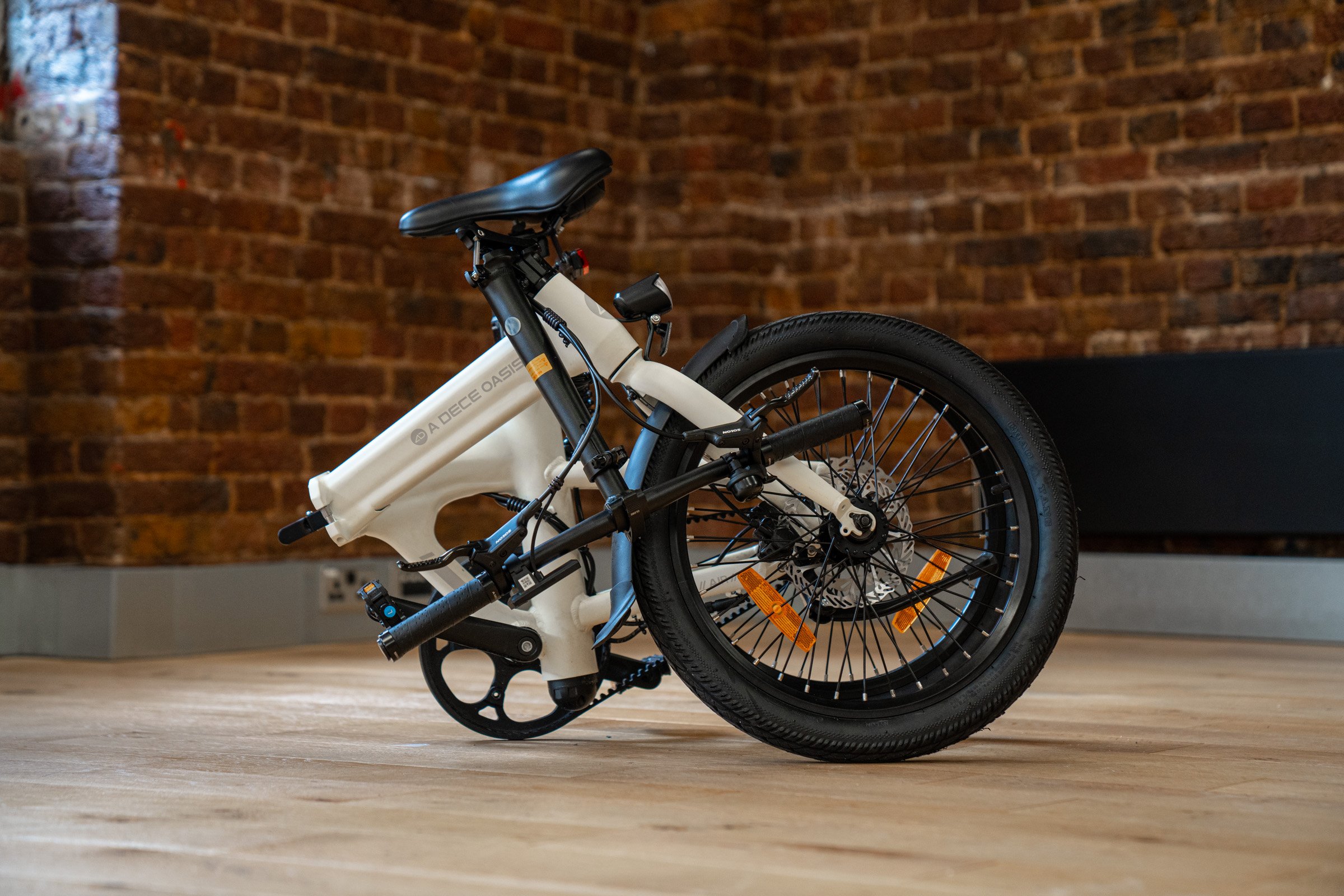

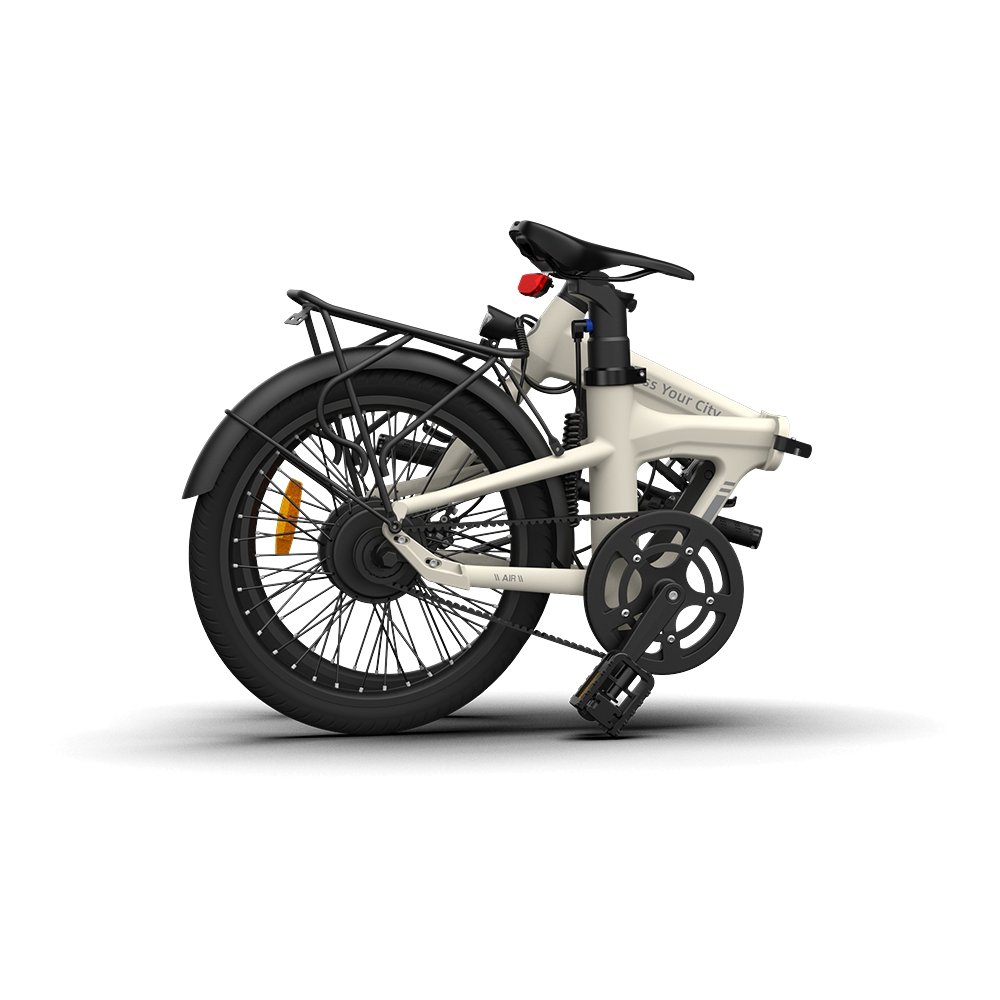

Three-segment Folding Design

Three-segment Folding Design

Featuring a three-segment folding design, the ADO Air 20 can be easily folded and unfolded within seconds, making it ideal for storage in small apartments or offices. With its overall unit dimensions of 1560*590*1150mm, it can effortlessly fit into tight spaces. Once folded, it reduces to just 850*680*420mm, allowing for easy transportation on public transport or in the trunk of a car.

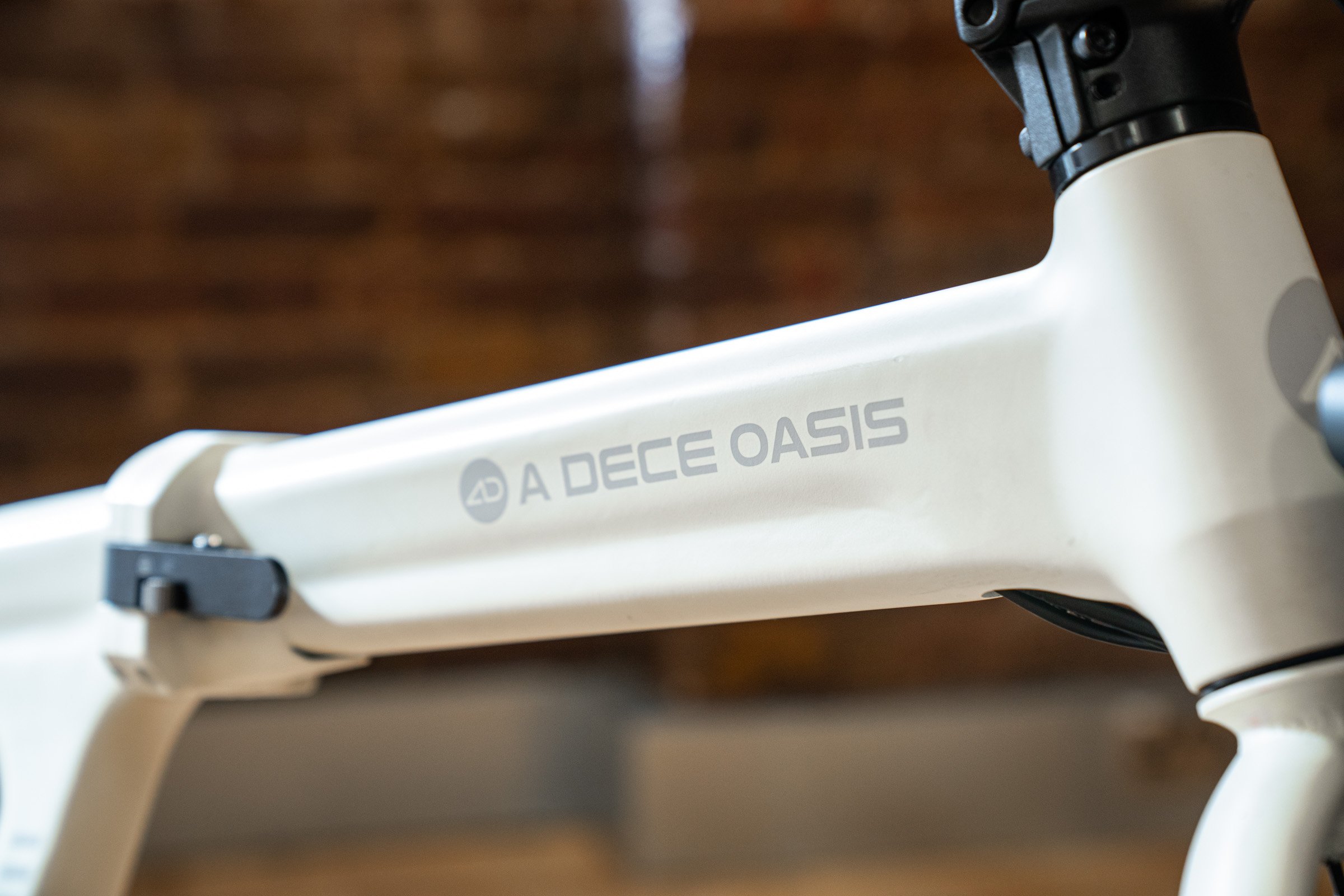

 High-quality Aluminum Alloy Frame

 High-quality Aluminum Alloy Frame

The ADO Air 20 is constructed from high-quality aluminum alloy, ensuring durability and longevity.

The front fork shock absorption system guarantees a smooth and comfortable ride,…

The front fork shock absorption system guarantees a smooth and comfortable ride, even on bumpy roads.

20*1.95 inch tyres

The bike is equipped with 20*1.95 inch tyres, providing excellent traction and stability.

Brushless Hub Motor

Brushless Hub Motor

Powered by a 36V/350W motor, the ADO Air 20 can reach a maximum speed of 30km/h. The motor's torque of 42N.m gives the bike impressive acceleration and climbing ability. With a rated capacity of 36V/9.6 Ah, the bike has a range of up to 50km on electric power alone and up to 100km with pedal assist. The battery can be fully charged within 4-6 hours using the included 42V/2A adapter.

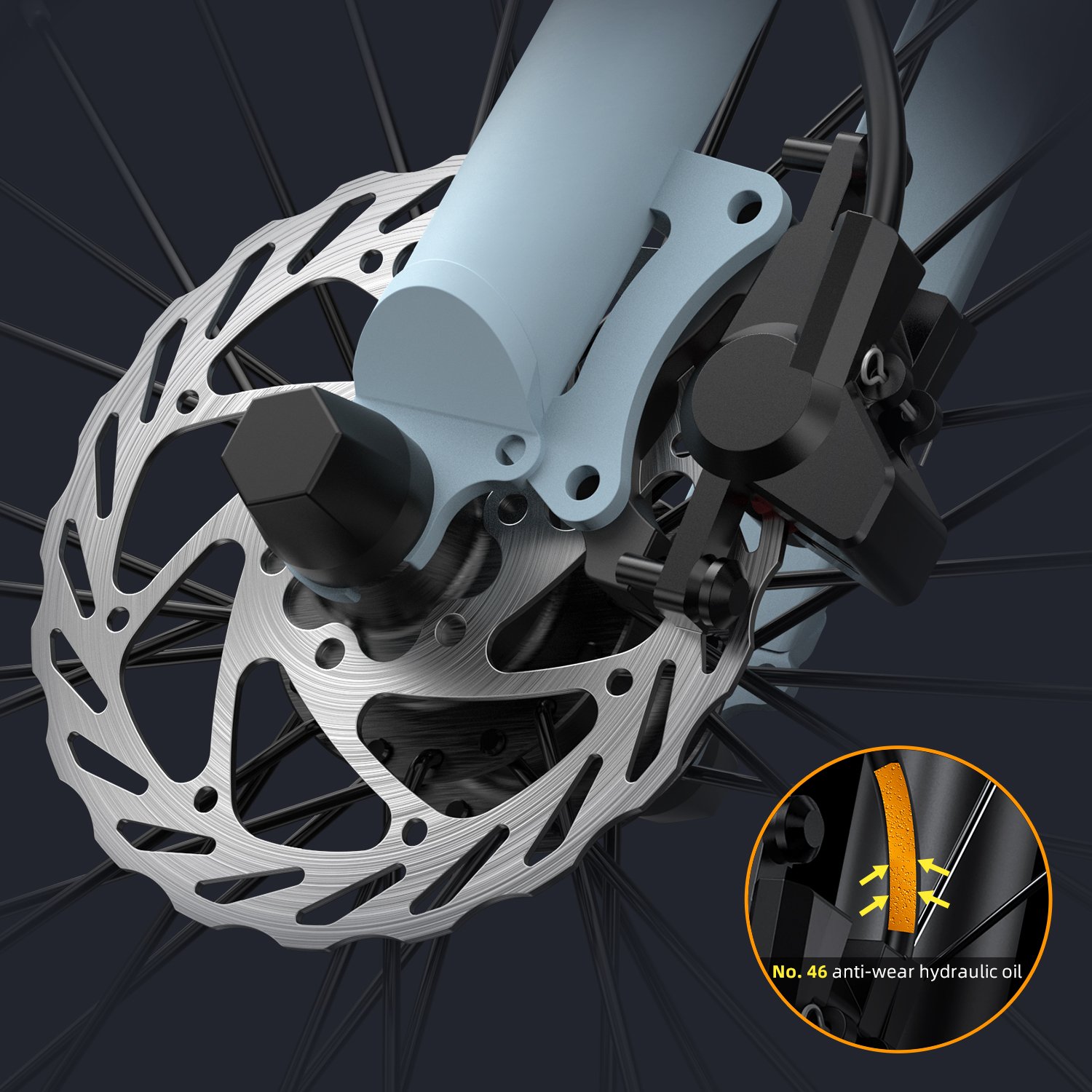

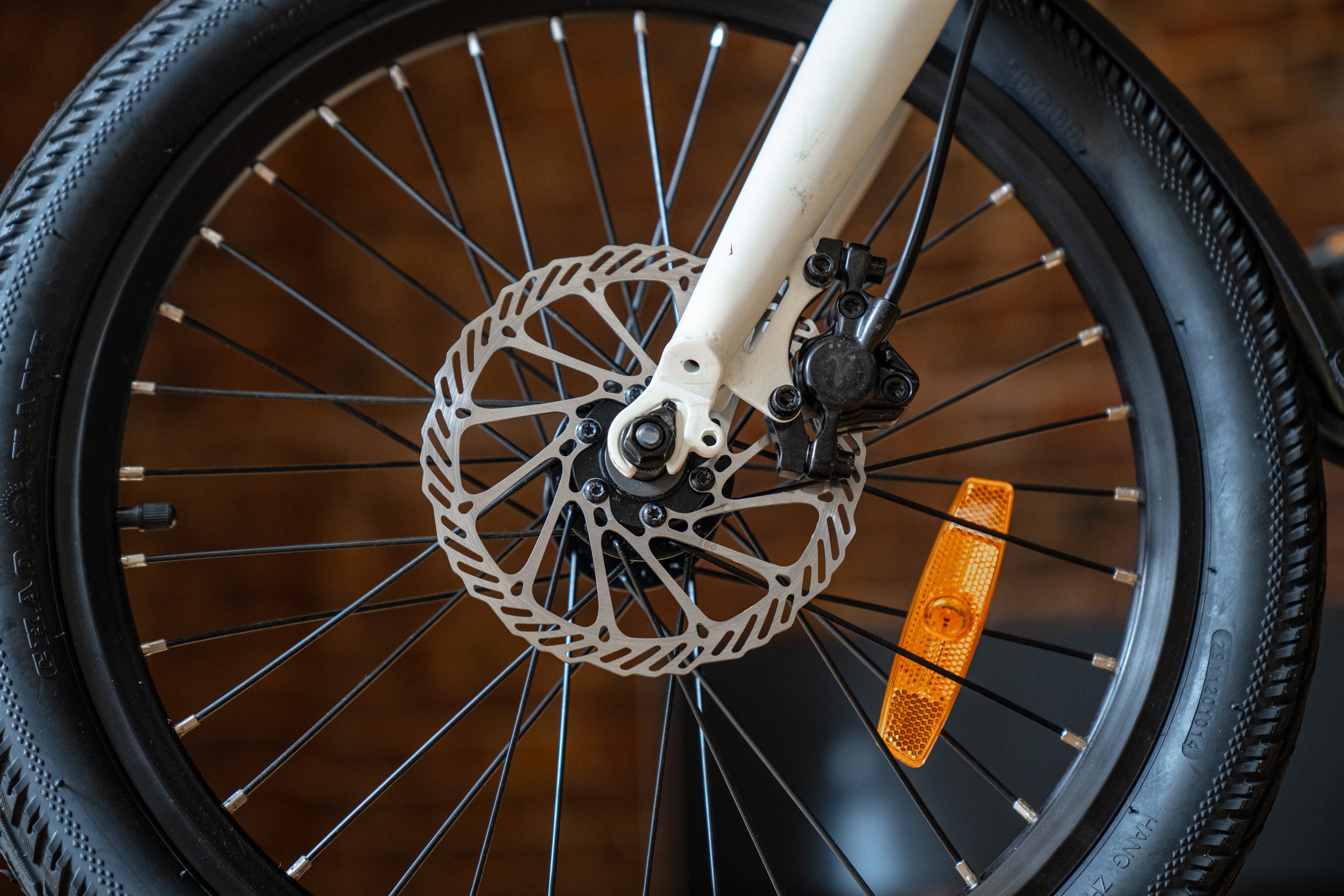

Hydraulic Disc Brakes

Hydraulic Disc Brakes

The ADO Air 20 Folding Electric Bike is equipped with front and rear hydraulic disc brakes, ensuring reliable stopping power in all weather conditions.

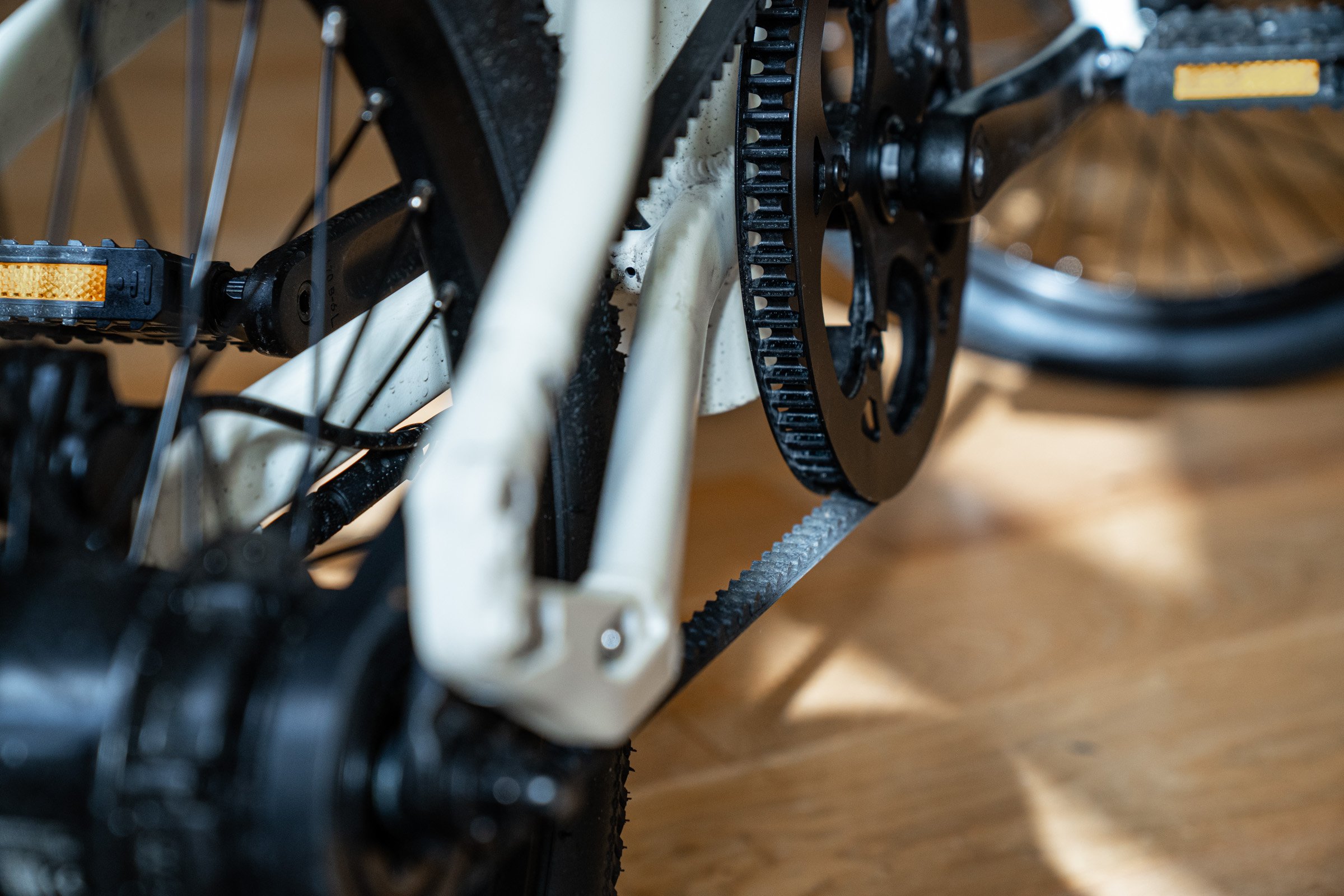

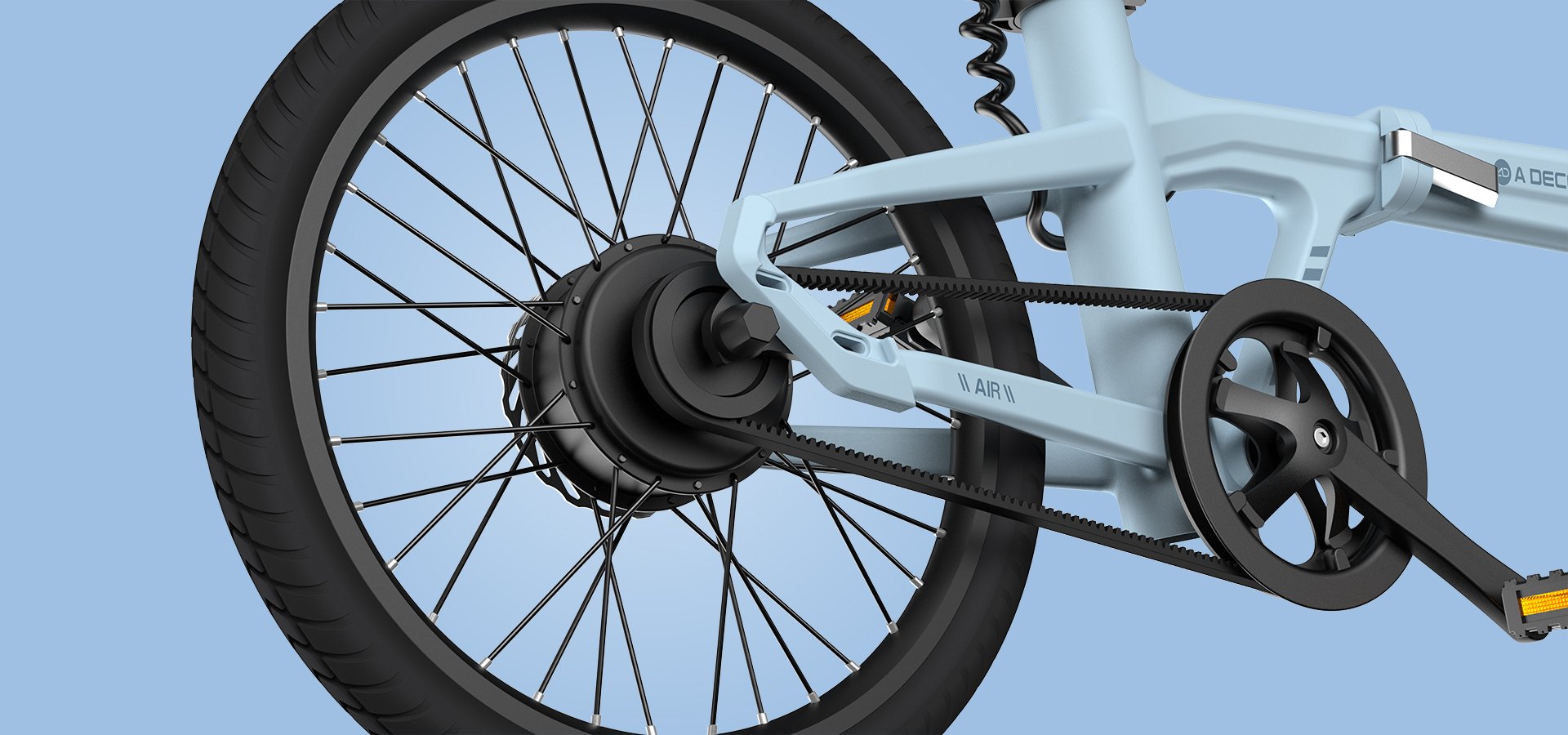

Carbon Belt Drive

Carbon Belt Drive

The carbon belt drive transmission system provides a smooth and quiet ride.

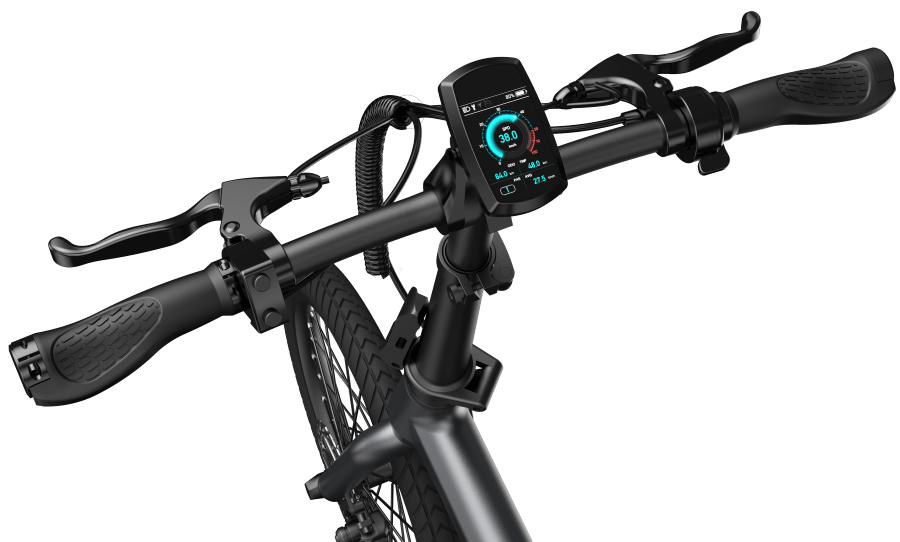

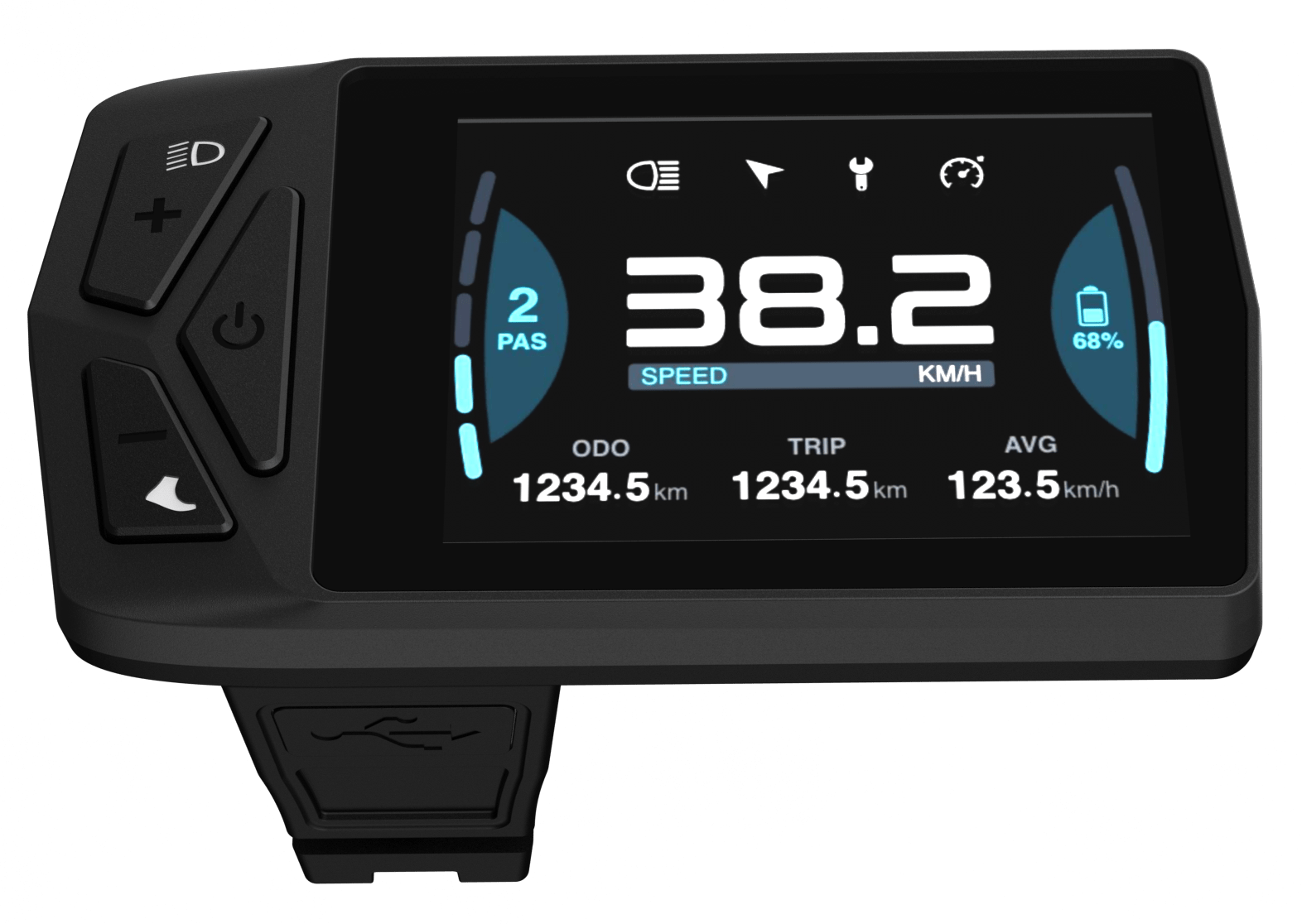

IPS LCD colorful display

IPS LCD colorful display

The bike also features an IPS LCD colorful display, allowing riders to easily monitor their speed, distance, battery level, and other parameters.

Built for Convenience

Built for Convenience

In terms of convenience, the ADO Air 20 comes with a mobile phone charging station that includes a USB Type-C port and a phone holder. Additionally, there is an electronic horn for safety and an option for a rear rack for carrying extra luggage.

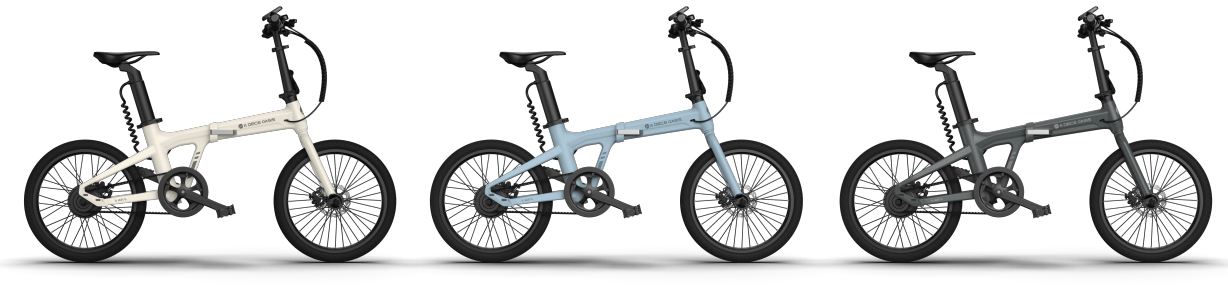

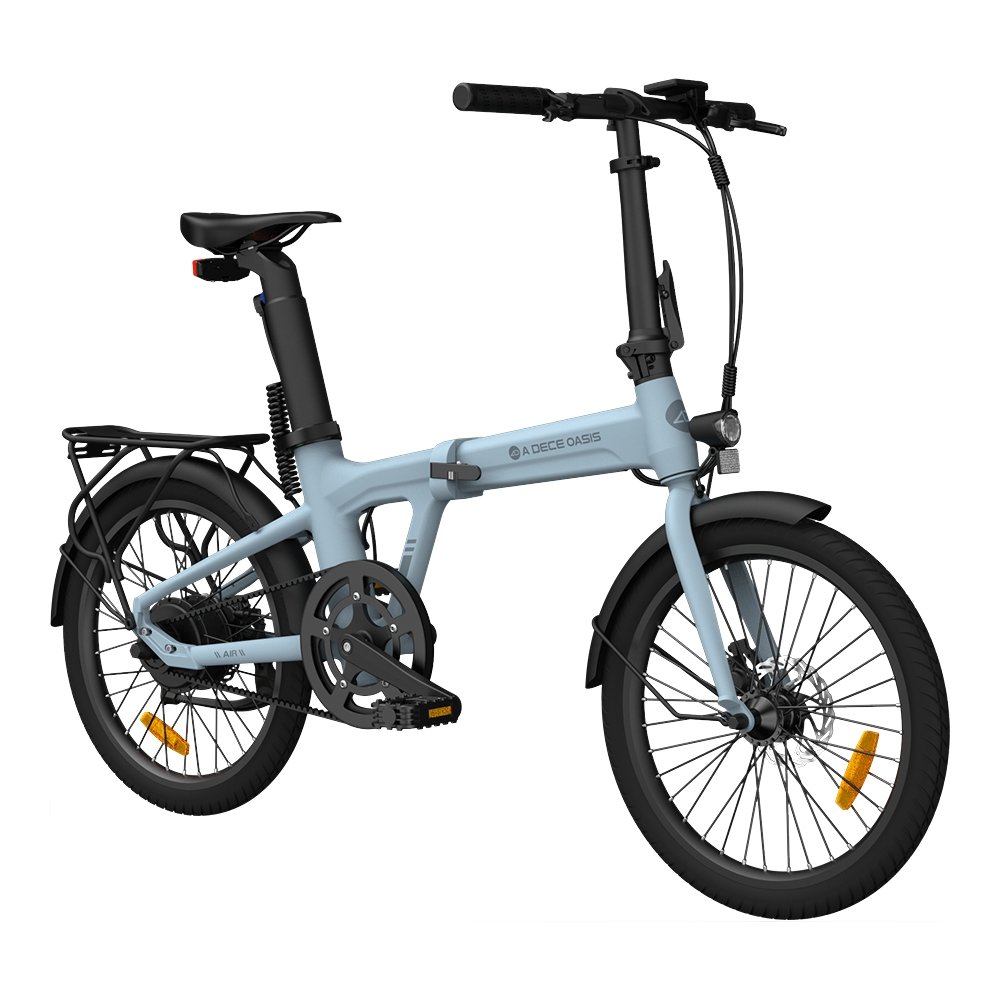

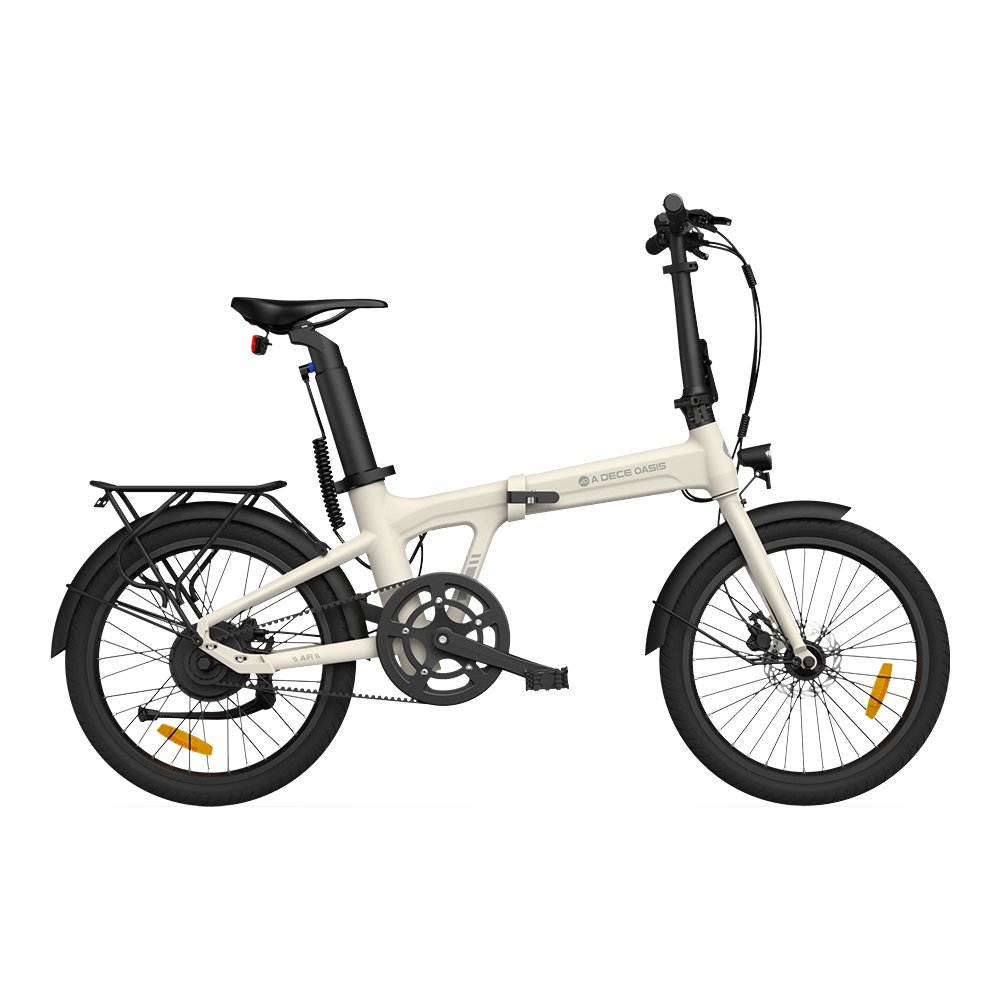

Three Colours

Three Colours

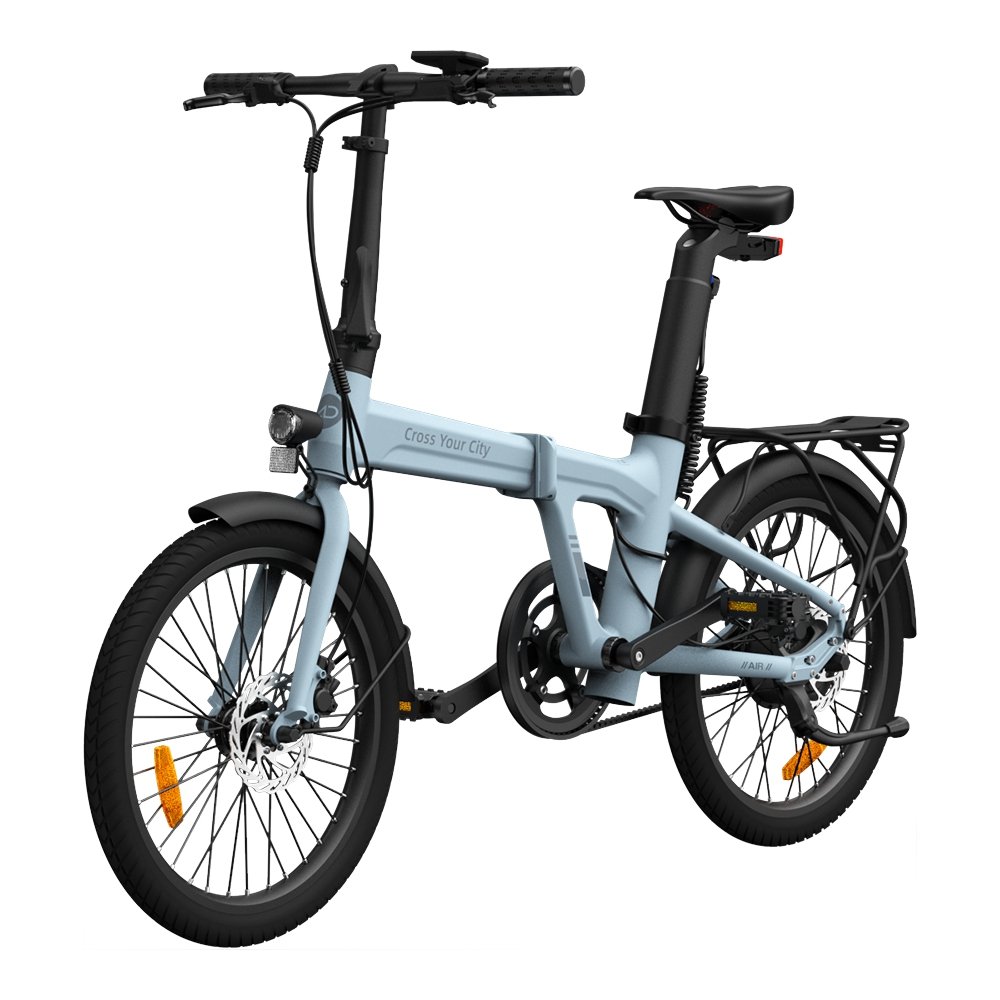

The bike's fenders help protect the rider from splashes, and the ivory white, blue, and grey color options give it a stylish and modern look.

With a maximum load capacity of 120kg, the ADO Air 20 Folding…

With a maximum load capacity of 120kg, the ADO Air 20 Folding Electric Bike is suitable for riders of various sizes. It also has an IPX5 water-proof level, ensuring that it can withstand light rain and wet conditions.

Whether you need a reliable daily commute option or a fun way to explore your city, the ADO Air 20 Folding Electric Bike offers the perfect solution. Its compact design, impressive performance, and eco-friendly features make it a game-changer in urban mobility. Discover the freedom and convenience of the ADO Air 20 today!

Spec

Color Ivory white & Blue & Grey
Tyre size 20*1.95 inch
Overall unit dimensions LΓ—WΓ—H 1560*590*1150mm
After folding dimensions LΓ—WΓ—H 850*680*420mm
Package dimensions LΓ—WΓ—H 880*360*610mm
Net weight 18 KGS
Gross weight 24 KGS
Max. load 120 KGS
Folding type Three-segment folding
Main frame material Aluminum alloy
Electric range ≀ 50 KM
Assisting range ≀ 100 KM
Shock-absorption Front fork shock absorption
Transmission system Carbon belt drive
Brake Front/Rear hydraulic disc brakes
Max. speed 30km/h
Motor rated power 36V/350W
Torque 42N.m
Rated capacity 36V/9.6 Ah
Charging time 4-6 hours
Battery management system Overheat/Short circuit/Overcurrent/Overcharge protect
Adapter power 42V/2A
Water-proof level IPX5
Alarm device Electronic horn
LCD IPS LCD colorful display
Mobile Phone Charging Station 5V/1A USB Type-C + Phone holder
Fender Plastic
Rear rack Option

Related Products

ADO Air 20 Folding Electric Bike

ADO Air 20 Folding Electric Bike

ADO Air 20 Folding Electric Bike

Β£50.00 β€’ Discount

Β£1,297.00

View Now

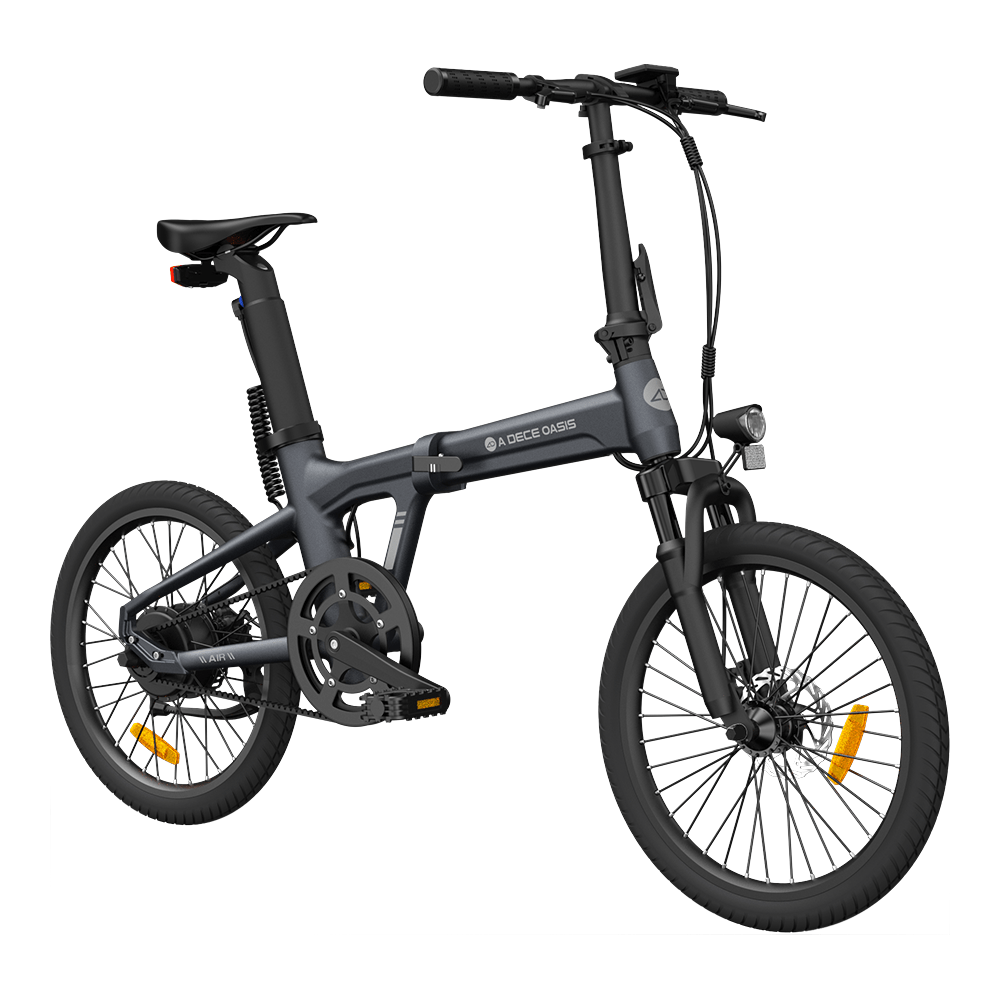

ADO Air 20S Folding Electric Bike

ADO Air 20S Folding Electric Bike

ADO Air 20S Folding Electric Bike

Β£100.00 β€’ Discount

Β£1,397.00

View Now

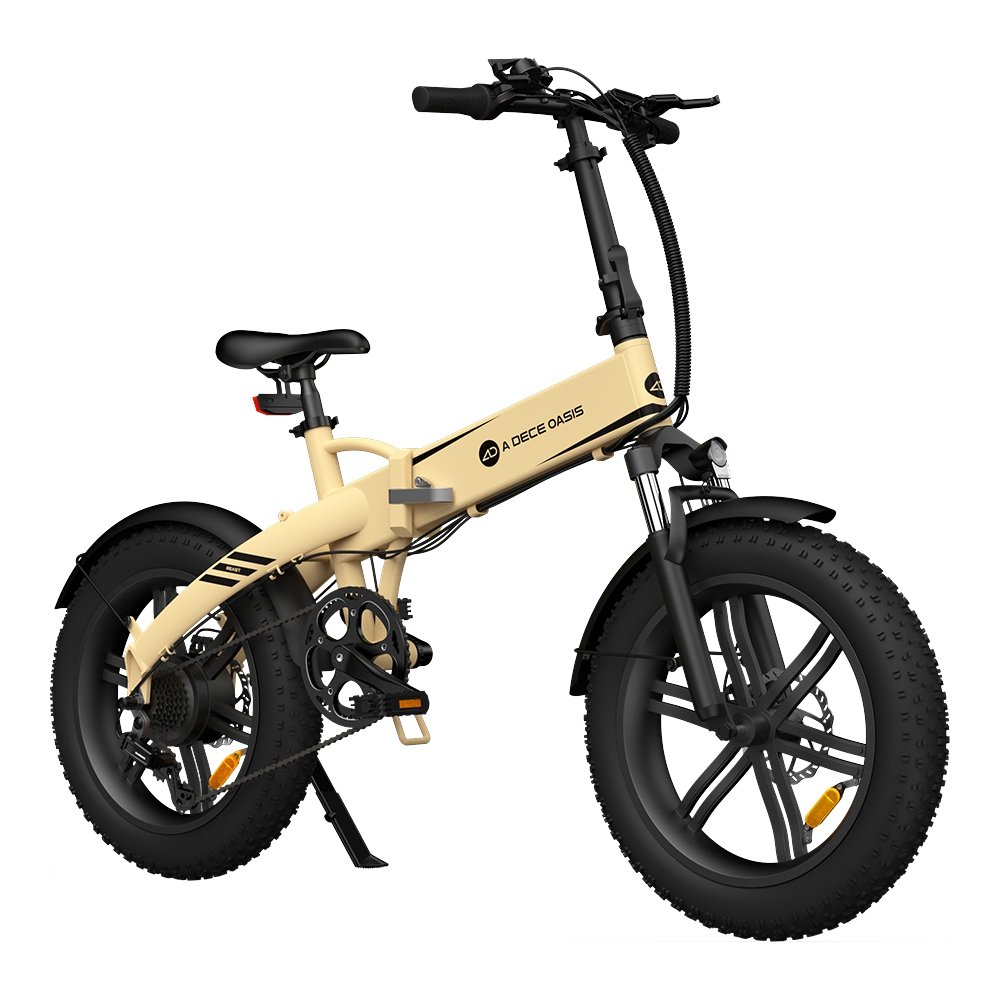

ADO Beast 20F Folding Electric Bike

ADO Beast 20F Folding Electric Bike

ADO Beast 20F Folding Electric Bike

Β£100.00 β€’ Discount

Β£1,397.00

View Now

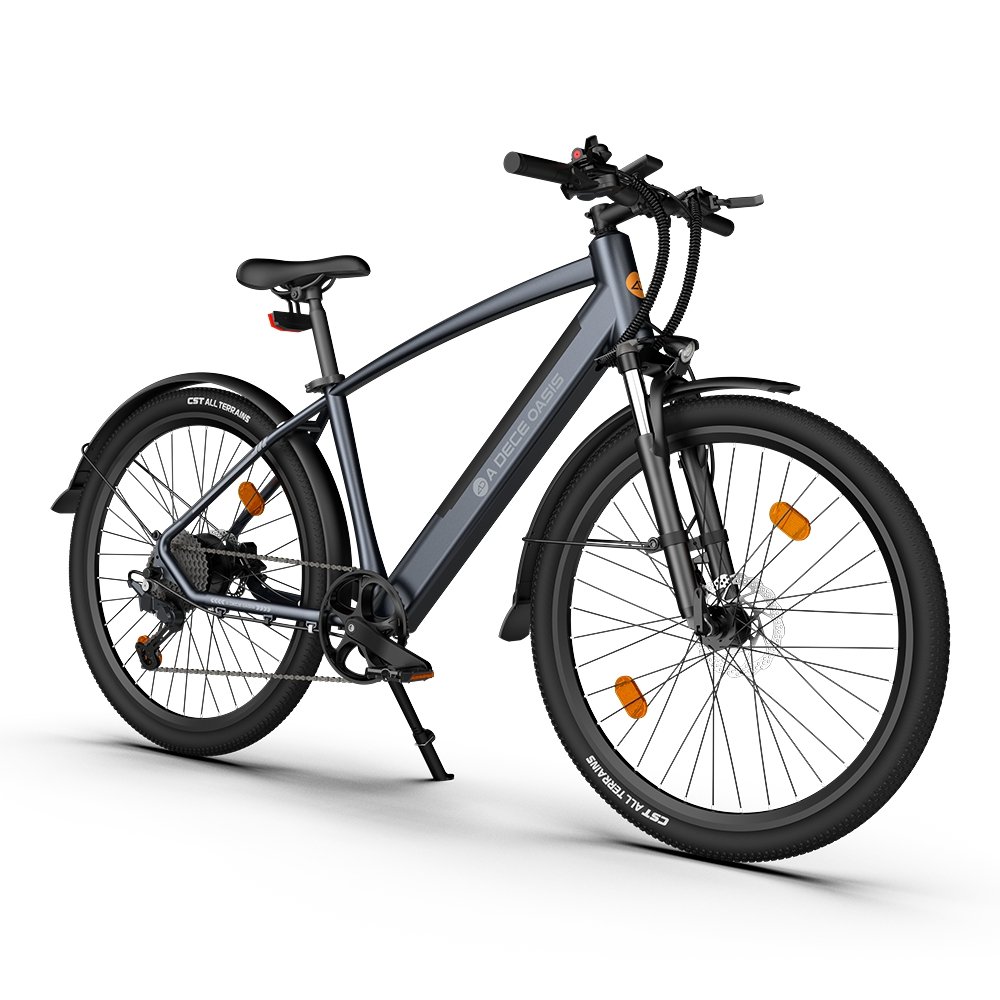

ADO DECE 300C Commuter Electric Road Bike

ADO DECE 300C Commuter Electric Road Bike

ADO DECE 300C Commuter Electric Road Bike

Β£50.00 β€’ Discount

Β£1,197.00

View Now

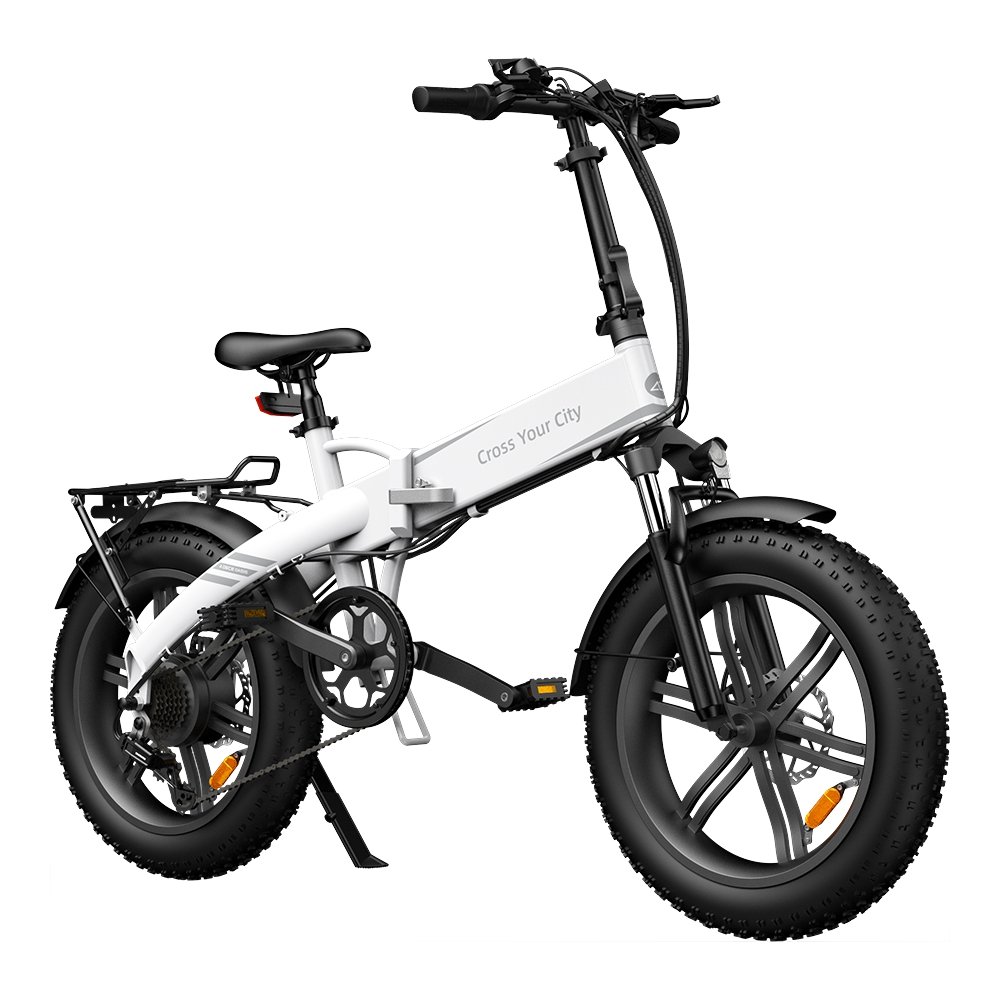

ADO A20F+ Fat Tyre Folding Electric Bike

ADO A20F+ Fat Tyre Folding Electric Bike

ADO A20F+ Fat Tyre Folding Electric Bike

Β£50.00 β€’ Discount

Β£1,297.00

View Now

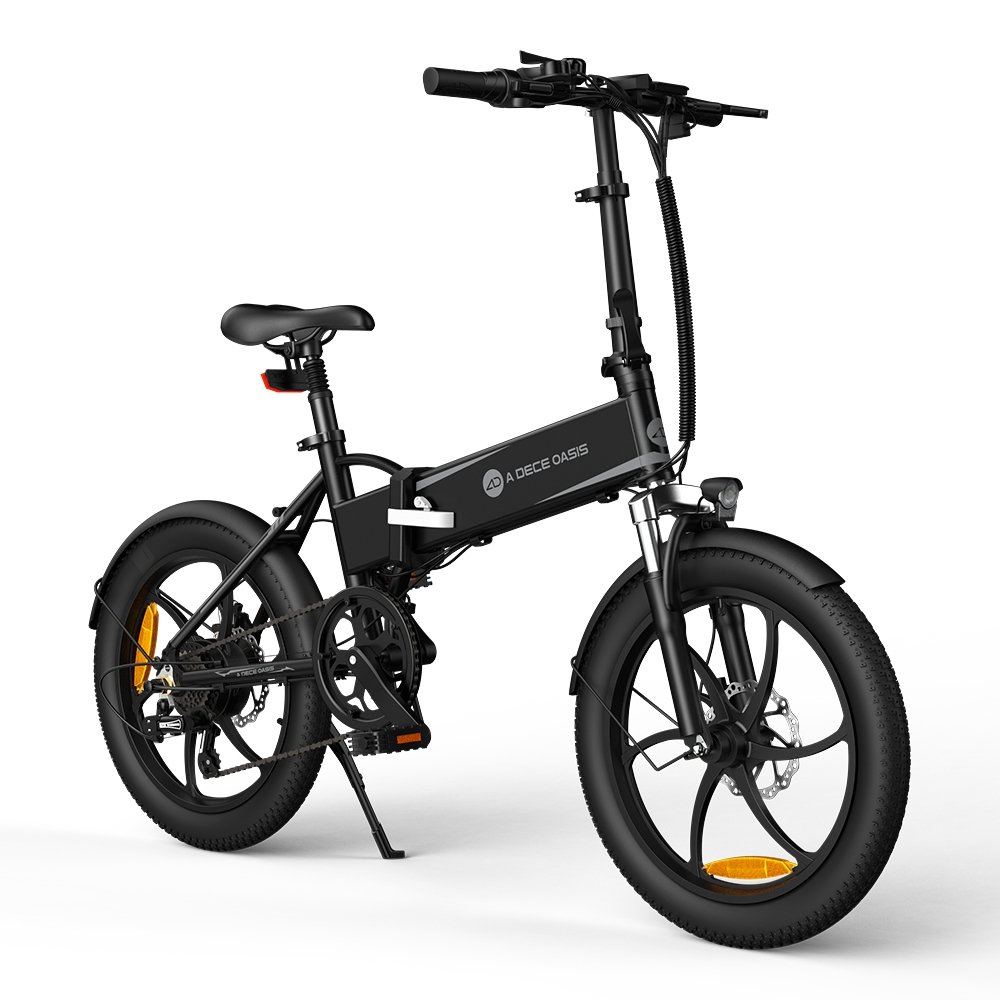

ADO A20+ Folding Electric Bike

ADO A20+ Folding Electric Bike

ADO A20+ Folding Electric Bike

Β£40.00 β€’ Discount

Β£1,097.00

View Now

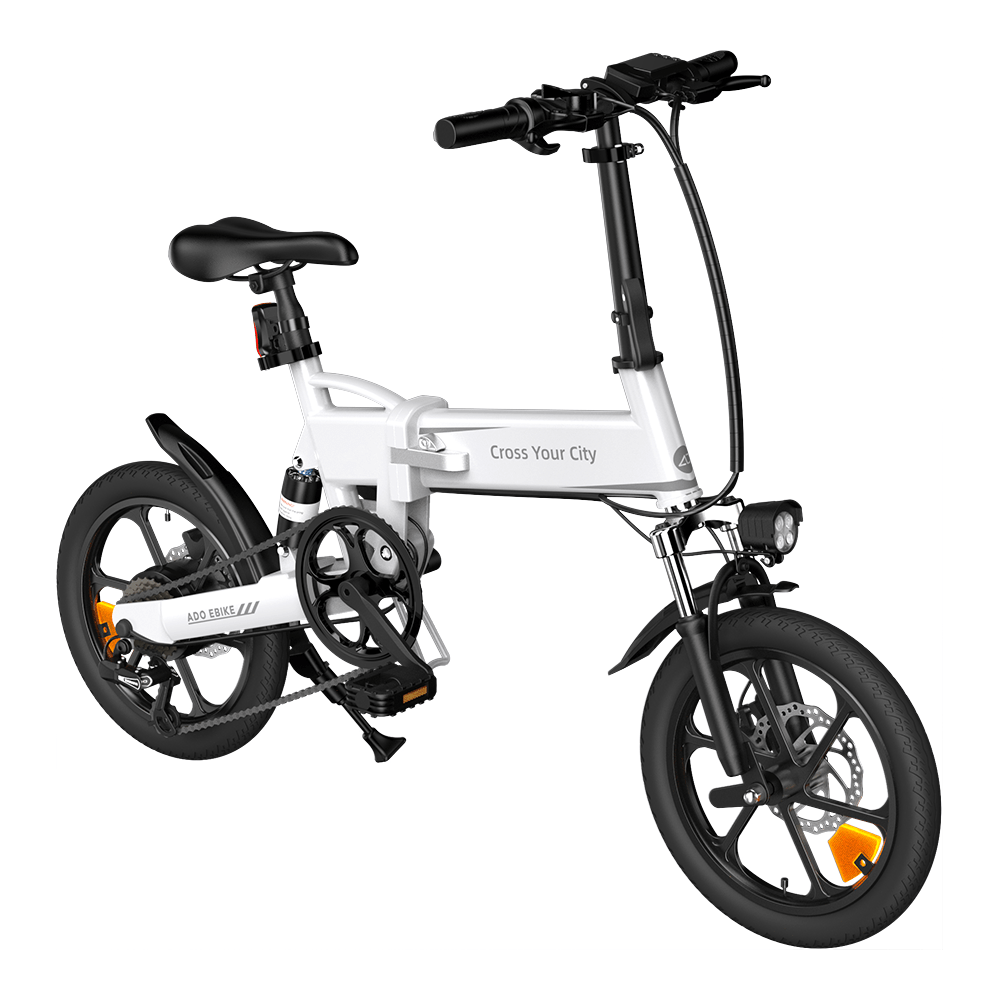

ADO A16+ Folding Electric Bike
